Door Automation Specialists — Sweden

Precision door
automation
parts.

Professional-grade accessories for automatic door systems. Sensors, controls, access systems and hardware — delivered across Sweden.

Scroll

SensorsSwitchesAccess ControlLocksHardwareCE CertifiedSensorsSwitchesAccess ControlLocksHardwareCE Certified

About SmartPass

The right part,
every time

SmartPass is a Swedish supplier of professional automatic door accessories. We stock sensors, switches, access control systems, locks, and hardware components for professional installers, property managers, and building companies across Sweden.

45+

Products

Certified

Delivery

Learn more

Product Catalog

Browse our
full range

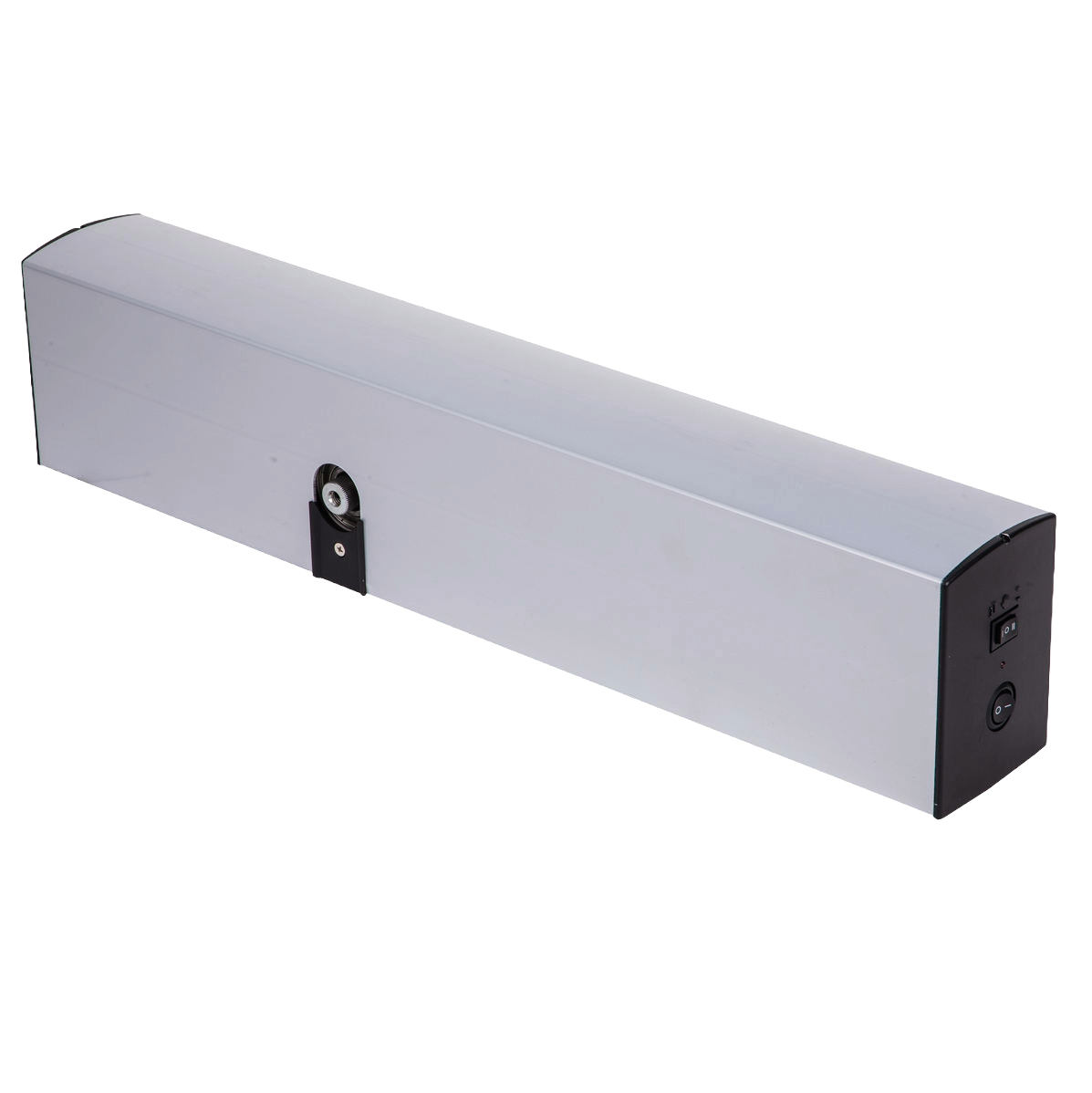

01 Automatic Swing Door Operator

ED250 — precision swing door automation

Low-energy efficient Fire-rated capable

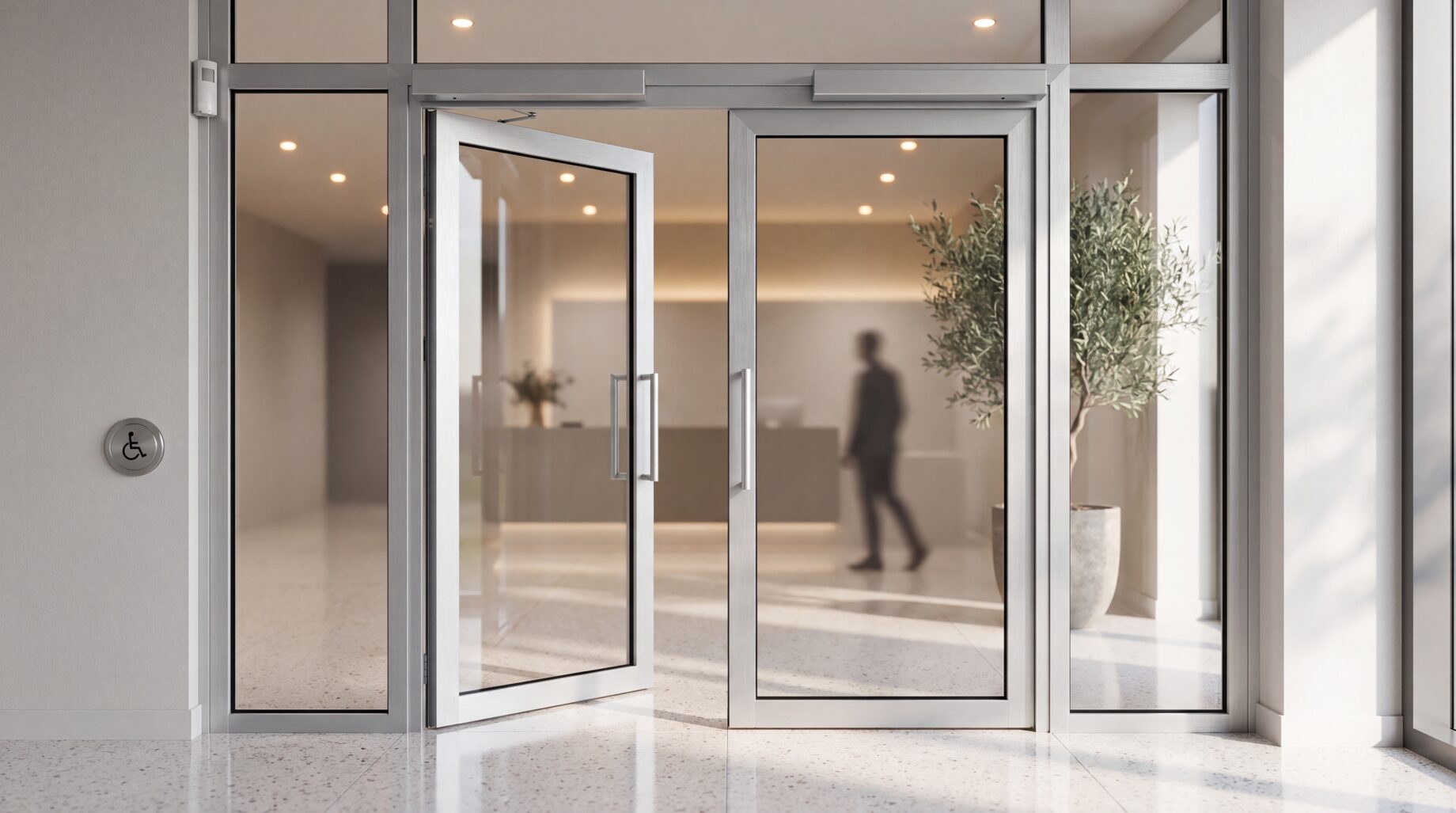

ED250 automatic swing door at a building entrance

02 Technical data

Specifications

Parameter	Specification
Power Supply	230 V AC +10%, 50 Hz
Fuse Rating	16 A
Accessories Output	Max. 24 V DC / 1.5 A
External Supply (accessories)	Max. 48 V DC/AC
Locking Relay Contact	230 V AC +10%, 50 Hz
Opening Speed	8 – 60 °/sec
Closing Speed	8 – 60 °/sec
Low-Energy Speed Limit	Max. 25 °/sec
Hold-Open Time	0 – 30 sec (standard) / 0 – 180 sec (Professional card)
Max. Static Force (opening)	2 – 15 N (adjustable)
Max. Static Force (closing)	2 – 15 N (adjustable)
Max. Closing Force (Full-Energy)	Up to 150 N
Latching Action Angle	2 – 10°
Electronic Latching Activation	Last 5° of closing cycle

03 Why ED250

Three core advantages

Dual assurance of safety and quality.

Flexible access — every scenario covered

The ED250 supports up to five different door-opening methods and features two built-in operating modes: Automatic and Manual.

Modular upgrade system — grow without replacing

Expand functionality on demand using four types of upgrade cards, without the need to replace the host unit.

Intelligent safety — active protection built in

The ED250 is equipped with multi-layered active safety mechanisms, including automatic reversal upon encountering obstacles and periodic self-checks of safety sensors.

Interested in the ED250?

Get product availability, specifications, and pricing.

Request a quote

01 Automatic Sliding Door Operator

ES200 — precision sliding door automation

German Dunkermotoren motor Up to 200 kg / leaf Intelligent control

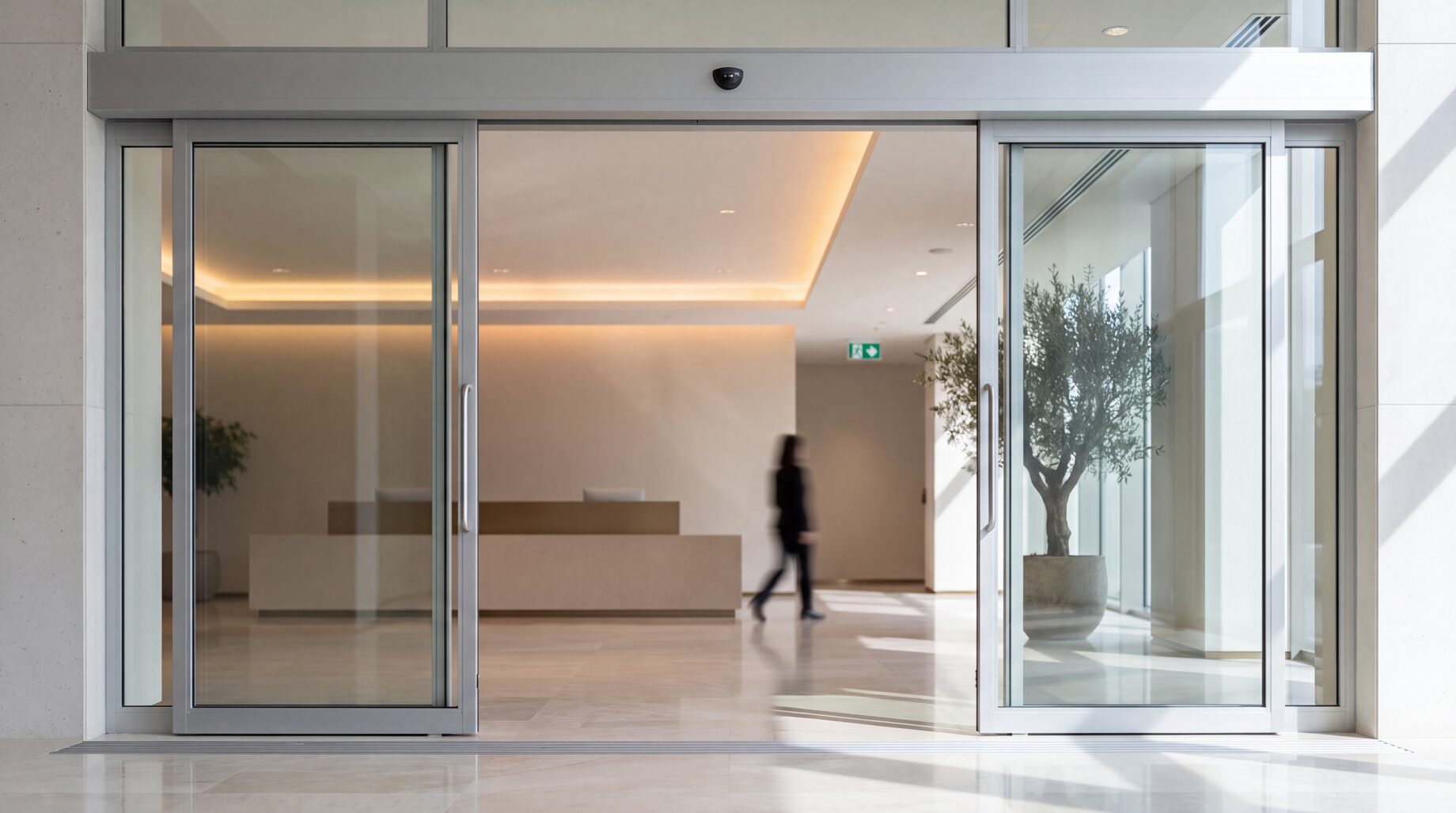

ES200 automatic sliding door at a building entrance

02 Technical data

Specifications

Technical parameters

Parameter	ES200
Height	150 mm
Depth	180 mm
Opening & closing force	Max. 150 N
Opening speed (incremental)	10 – 70 cm/s
Closing speed (incremental)	10 – 50 cm/s
Hold-open time	0 – 180 sec
Mains voltage, frequency	80 – 230 V, 50/60 Hz
Power consumption	250 W
International protection	IP 20

Door parameters

Parameter	Specification
1-panel sliding door
Transit width (LW)	700 – 3000 mm
Door panel weight	Max. 200 kg (per leaf)
2-panel sliding door
Transit width (LW)	800 – 3000 mm
Door panel weight	Max. 160 kg / leaf (×2)

03 Why ES200

Three core advantages

German drive, intelligent control, heavy-duty build.

German-engineered drive

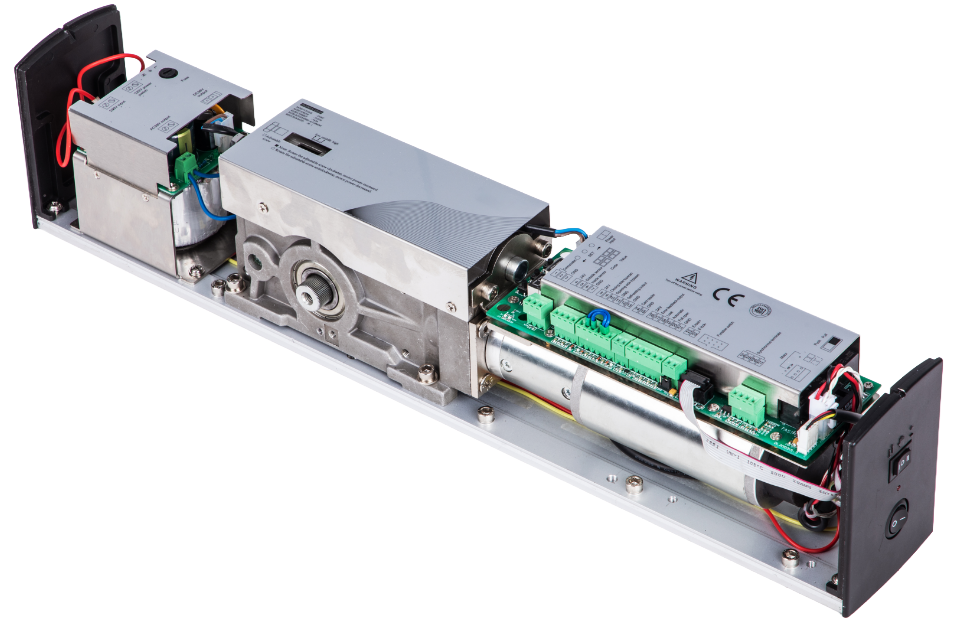

A robust Dunkermotoren DC motor with worm-gear reduction and IP65 protection delivers precise, quiet, long-life operation.

Intelligent control

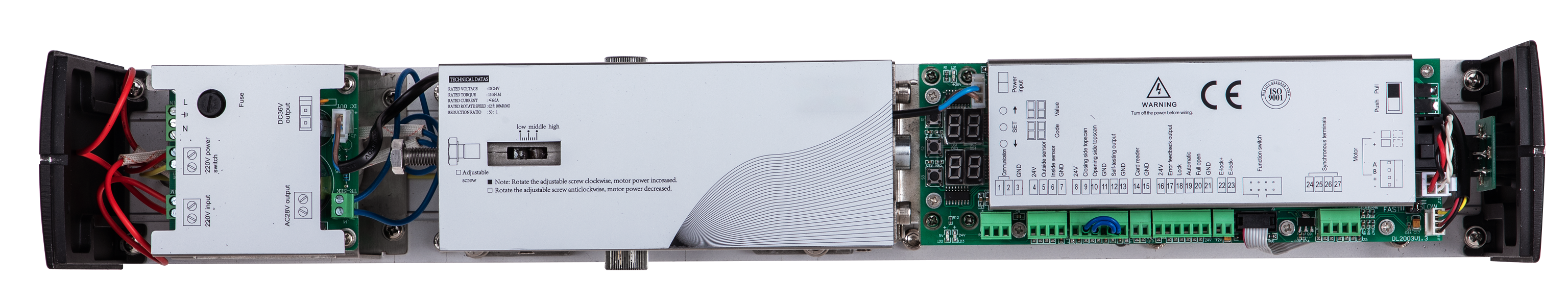

An integrated, self-cooling control board with fault-code display and LED status, supporting up to five opening methods — sensor, access control, switch, and remote.

Heavy-duty, built to last

Up to 200 kg per leaf on a reinforced European-standard anodised track — hardened, durable and wear-resistant.

Interested in the ES200?

Get product availability, specifications, and pricing.

Request a quote

Get in Touch

Request a quote or
ask a question

Send us your enquiry and we will get back to you promptly with product availability, specifications, and pricing.

[email protected]

+46 8 18 00 18

Stockholm · Göteborg · Malmö
